Interspect Ltd.
Airborne Systems and UAS Technology
Aerial cameras, surveying UAS, control units, and software
Interspect IS 4 multispectral aircraft-mounted aerial camera
References
Experimental RGB Aerial Camera System
- Max. GSD: 3 cm
- Resolution: 6000 x 4000 - 24.5 MP
- 0.6 µ
- 3 spectral bands
R; G; B
- Bit Depth: 14-bits
- up to 130 frames in continuous shootging
- Dimensions: 310 x 200 x 214 mm
- For Aerial Photogrammetry
RGB Aerial Camera System
- Max. GSD: 3 cm
- Resolution: 6000 x 4000 - 24.5 MP
- 0.6 µ
- 3 spectral bands
R; G; B
- Bit Depth: 14-bits
- up to 130 frames in continuous shootging
- Dimensions: 310 x 200 x 214 mm
- For Aerial Photogrammetry
Multispectral Aerial Camera System
- Max. GSD: 1 cm
- Resolution: 6000 x 4000
- 24 MP
- 0.6 µ
- 6 spectral bands
R; G; B; NIR-1; NIR-2; NIR-3
- Bit Depth: 14-bits
- High-speed image acquisition
- Dimebsions: 370 x 300 x 210 mm
- For Nature Conservation and Scientific Research

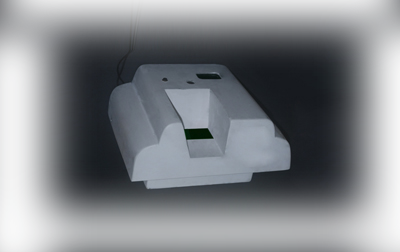

Interspect IS 3
High spatial resolution
Multispectral Aerial Camera System
GSD: 1 cm
- Resolution: 7354 x 4898 - 10 MP
- 0.6 µ
- 6 spectral bands
NUV; R; G; B; NIR-1; NIR-2
- Bit Depth: 14-bits
- High-speed image acquisition
- Dimebsions: 388 x 310 x 470 mm
- For Nature Conservation and Scientific Research
- Vegetation mapping
- Forest management
- Forest damage mapping
- Localization of infections and insect pests
- For Water Management
- Contamination detection

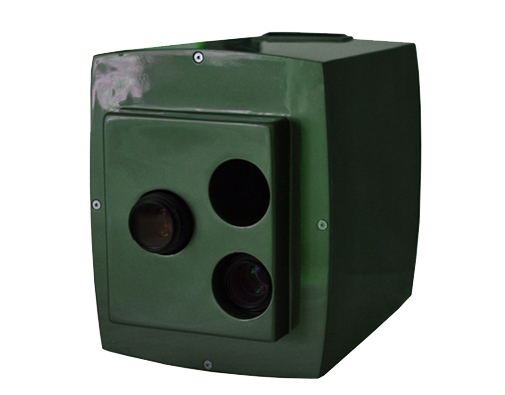

INTERSPECT IS 4 MA I.
Extreme high spatial resolution
Multispectral Aerial Camera System
Max. GSD: 0,5 cm
- Resolution: 7354 x 4898 - 36 MP
- 0.48 µ
- 6 spectral bands
NUV; R; G; B; NIR-1; NIR-2
- Bit Depth: 14-bits
- High-speed image acquisition
- Dimebsions: 388 x 310 x 470 mm
- For Nature Conservation and Scientific Research
- Colony Mapping
- Vegetation mapping
- Forest management
- Forest damage mapping
- Surveys for national parks and conservation areas
- Mapping the invasive plant species

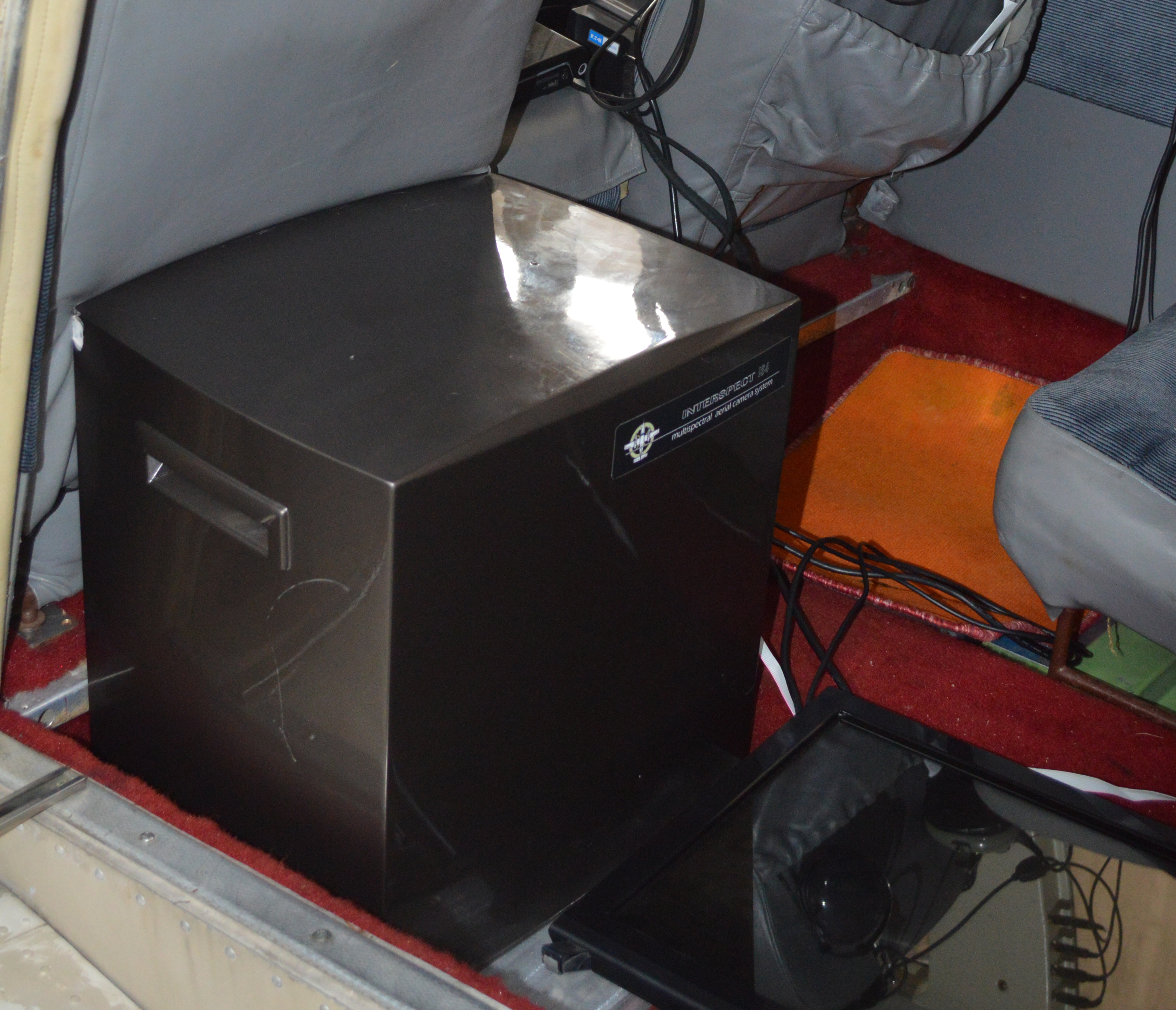

INTERSPECT IS 4 MA II
High Resolution Aerial Camera System for Cadastral Mapping
Max. GSD: 4 cm
- Resolution: 15811 x 11713 - 185 MP
- 0.6 µ
- 3 spectral bands
- Spectral Resolution: RGB
- Bit Depth: 14-bits
- High Resolution Photogrammetry
- Dimebsions: 520 x 410 x 310 mm

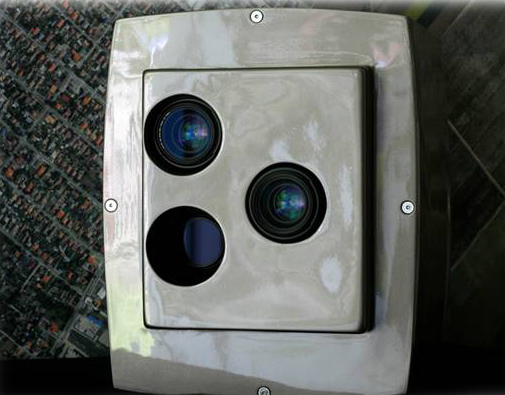

Interspect IS 4 SCMC
High Resolution MS - HS Aerial Penta Camera System for all cases
Max. GSD: 0.4 cm
- Resolution: 7x 8684 x 5790 - 185 MP
- 0.6 µ
- 7 spectral bands
- Spectral Resolution: RGB, Nir1, Nir2, Red edge, UV
- Bit Depth: 14-bits
- Shortest exposure time: 1/8000 sec
- Dimebsions: 970 x 320 x 310 mm

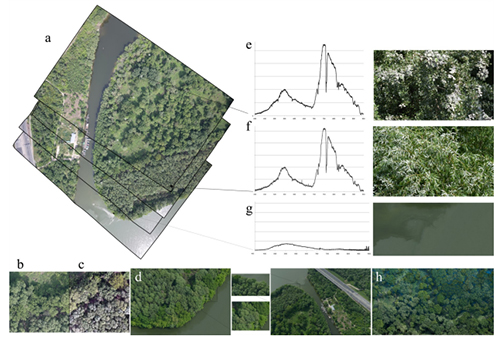

Sample of Interspect IS 5 image set
The field camera and support structure were designed and manufactured for the Institute of Botany and Ecophysiology.
The system, equipped with a filter wheel and a high-resolution digital camera, was commissioned by the Institute for Soil Science of the Hungarian Academy of Sciences.
- INTERSPECT Forest Survey Camera (Complex MS - 3D system)
- 3D vegetation survey
- NDVI, Vi Green maps with corrections in the imaging system & dense 3D pointcloud
- Tracking System
- Calibration
- Mission Planner
Weight: 2,1 kg
- PhotoScan Pro software
- INTERSPECT NDVI or RGB camera
- Calibrated 5 MP single frame camera for quick photogrammetry & vegetation survey
- For mapping wetlands, marshes, inaccessible places
- Two-axis camera holder
with servo motor
- Mission Planner
- Weight: 0,6 kg
- PhotoScan Pro software

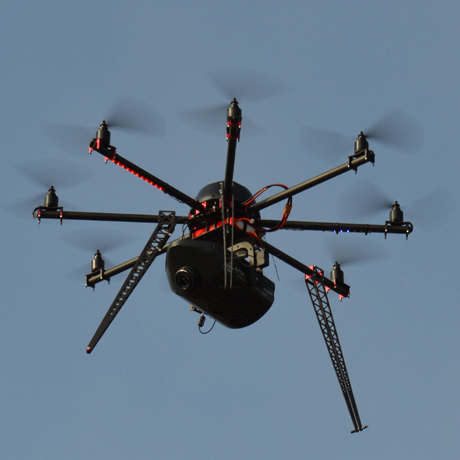

Interspect octocopter equipped with a downward-looking calibrated multispectral camera and a forward/downward-looking calibrated camera (IS U3.1 multispectral sD camera, Interspect UAS B 3.1 octocopter)

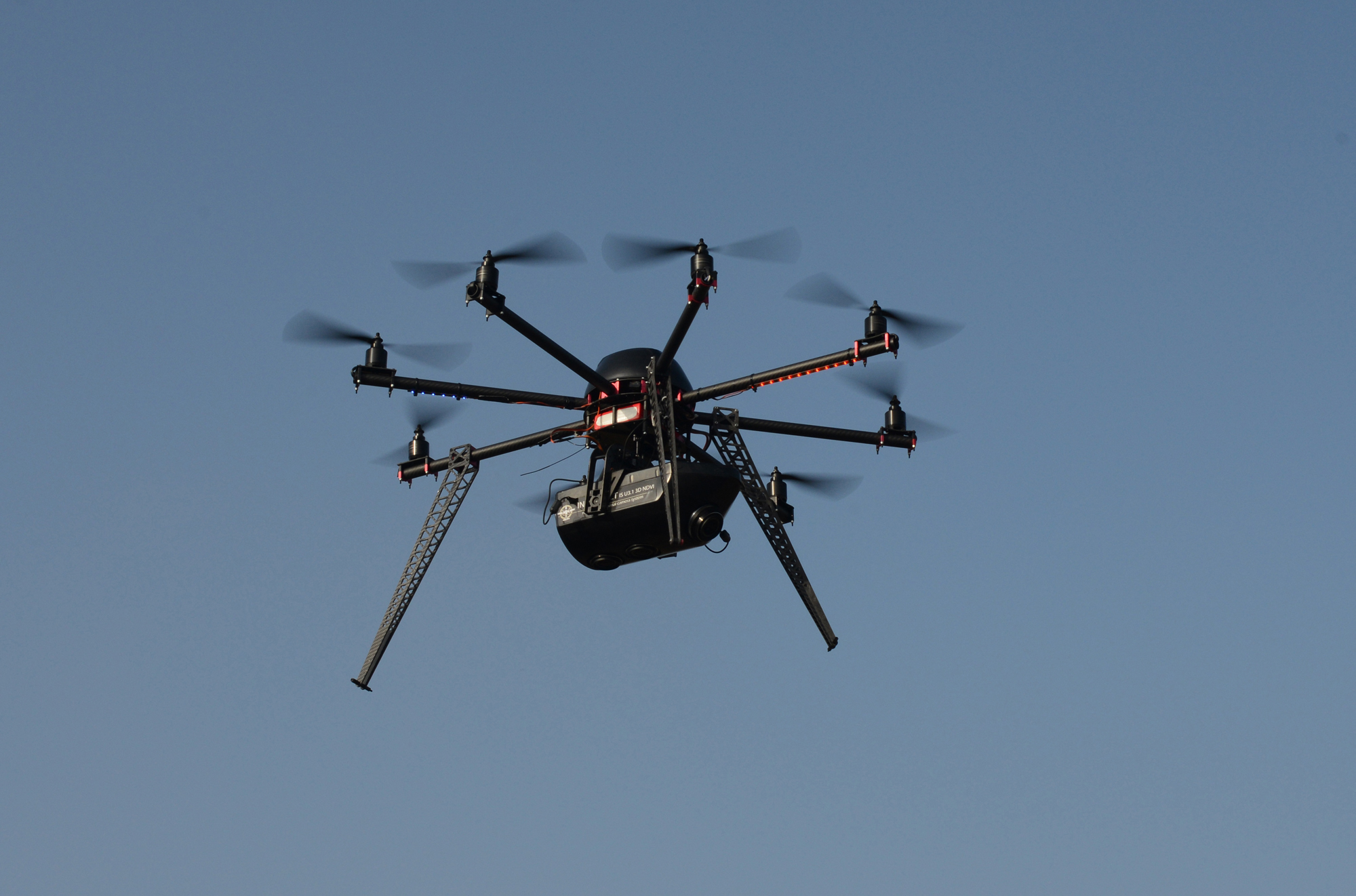

Interspect UAS B 3.1 octocopter unmanned aerial system

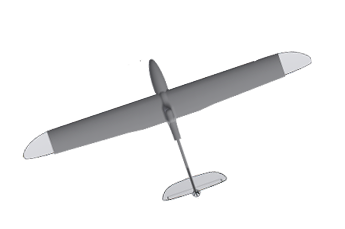

Interspect Surveyor UAS with a 4 m wingspan and Interspect Walker UAS
INTERSPECT IS U2.1 NDVI camera design and the manufactured prototype
INTERSPECT IS 4 SCMC and the side-view of the multispectral INTERSPECT IS 4 aerial camera from the aircraft exterior and installation in the Piper PA-32 Cherokee Six aircraft
